產品中心行星減速箱

45mm外轉子無刷電機配42mm行星減速箱

選件:

BLDC Planetary Gear Moto （Ring Gear Material: Metal）

型號

范圍

FL45BLW /42JM150K

Φ42減速器，允許轉矩范圍：1.5N.m~15N.m

42mm OD Planetary Gearbox, Permissible Load Range: 1.5N.m~15N.m

配置FL45BLW18-24V-7130A無刷直流電機(LD=18mm) FL45BLW18-24V-7130A BLDC Motor (LD=18mm)

減速比 Reduction ratio		3.71	5.18	14	19	27	49	59	68	82	95	115	181	218	253	305	354	426
減速級數 Number of gear trains		1	1	2	2	3	3	3	3	3	3	3	4	4	4	4	4	4
減速器長度(L) Length(L)	mm	31.5	31.5	42.1	42.1	52.5	52.5	52.5	52.5	52.5	52.5	52.5	62.9	62.9	62.9	62.9	62.9	62.9
空載轉速 No-load speed	r/min	1752	1255	464	342	241	133	110	96	79	68	57	36	30	26	21	18	15
額定轉速 Rated speed	r/min	1348	965	357	263	185	102	85	74	61	53	43	28	23	20	16	14	12
額定轉矩 Rated torque	N.m	0.17	0.23	0.57	0.77	1.1	1.8	2.2	2.5	3	3.5	4.2	5.9	7.1	8.2	9.9	12	14
最大瞬間允許負載Max. permissible load in a short time	N.m	4.5	4.5	18	18	30	30	30	30	30	30	30	38	38	38	38	38	38

配置FL45BLW21-24V-6750A無刷直流電機(LD=21mm) FL45BLW21-24V-6750A BLDC Motor (LD=21mm)

減速比 Reduction ratio		3.71	5.18	14	19	27	49	59	68	82	95	115	181	218	253	305	354
減速級數 Number of gear trains		1	1	2	2	3	3	3	3	3	3	3	4	4	4	4	4
減速器長度(L) Length(L)	mm	31.5	31.5	42.1	42.1	52.5	52.5	52.5	52.5	52.5	52.5	52.5	62.9	62.9	62.9	62.9	62.9
空載轉速 No-load speed	r/min	1806	1293	479	353	248	137	114	99	82	71	58	37	31	26	22	19
額定轉速 Rated speed	r/min	1418	1015	376	277	195	107	89	77	64	55	46	29	24	21	17	15
額定轉矩 Rated torque	N.m	0.28	0.39	0.95	1.3	1.8	3	3.6	4.2	5	5.8	7.1	9.9	12	14	15	15
最大瞬間允許負載Max. permissible load in a short time	N.m	4.5	4.5	18	18	30	30	30	30	30	30	30	38	38	38	38	38

配置FL45BLW27-24V-6170A無刷直流電機(LD=27mm) FL45BLW27-24V-6170A BLDC Motor (LD=27mm)

減速比 Reduction ratio		3.71	5.18	14	19	27	49	59	68	82	95	115	181	218
減速級數 Number of gear trains		1	1	2	2	3	3	3	3	3	3	3	4	4
減速器長度(L) Length(L)	mm	31.5	31.5	42.1	42.1	52.5	52.5	52.5	52.5	52.5	52.5	52.5	62.9	62.9
空載轉速 No-load speed	r/min	1644	1178	436	321	226	124	103	90	74	64	53	34	28
額定轉速 Rated speed	r/min	1305	934	346	255	179	99	82	71	59	51	42	27	22
額定轉矩 Rated torque	N.m	0.43	0.61	1.5	2	2.8	4.7	5.6	6.5	7.8	9	11	15	15
最大瞬間允許負載Max. permissible load in a short time	N.m	4.5	4.5	18	18	30	30	30	30	30	30	30	38	38

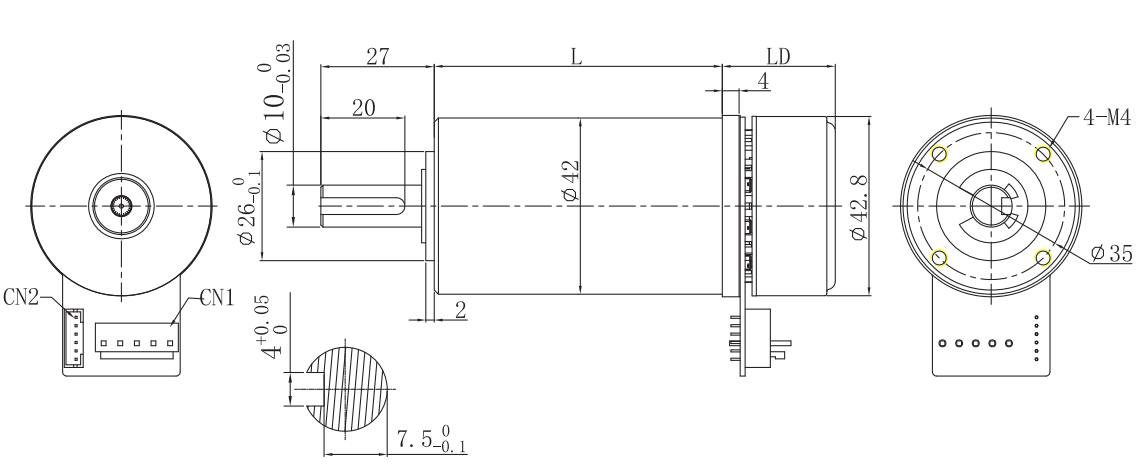

電機尺寸
