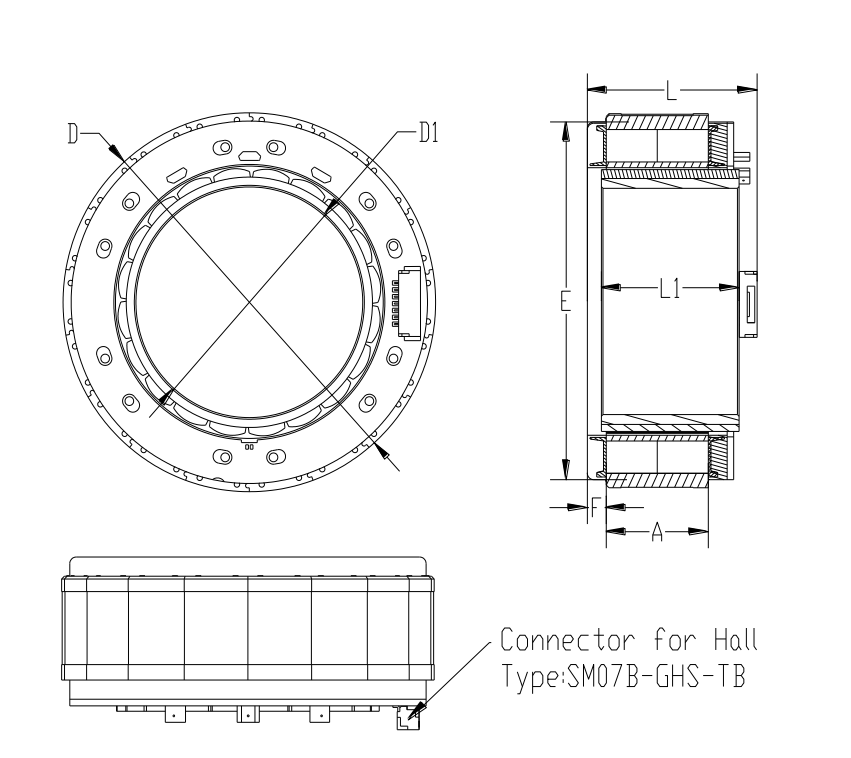

定子外徑D

85mm

85mm

±0.043(js9)

定子長度L

36mm

27.5mm

±1

轉子內徑D1

52mm

52mm

+0.046/0(H8)

轉子長度L1

34mm

21.5mm

±0.25

灌膠面外圓E

81mm

81mm

±0.2

灌膠面高度F

4.2mm

4.2mm

±0.3

定子鐵芯高度A

23mm

13mm

0/-0.5

霍爾分布角度( Hall Effect Angle )

120度電角度 ( Electrical Angle of 120 degree)

介電強度( Dielectric Strength )

1000VAC/1S

絕緣電阻( Insulation Resistance )

100MΩ, 500VDC

使用環境( Operation Ambient )

-20°C   ~   +50°C

絕緣等級(Insulation Class)

Class B

PIN1

Connector for Hall is optional

Type: SM07B-GHS-TB

熱敏 ( NTC2 )

PIN2

熱敏 ( NTC1 )

PIN3

霍爾電源負 ( GND )

PIN4

霍爾 A ( Ha )

PIN5

霍爾 B ( Hb )

PIN6

霍爾 C( Hc )

PIN7

霍爾電源正  ( Vcc )

黃色  ( Yellow )

UL1332 AWG18

UL1332 AWG16

U相 ( Phase U )

紅色  ( Red )

V相 ( Phase V )

黑色  ( Black)

W相 ( Phase W )

極數  ( Number of poles )

20

20

相數  ( Number of phases )

3

3

額定電壓 ( Rated  voltage )

VDC

48

48

額定轉矩 ( Rated torque)

N.m

2.0

1.44

額定電流(Rated current)

A

15

9.8

額定速度 ( Rated speed )

RPM

3500

2950

額定功率 ( Rated power )

W

732

440

最大轉速(Maximum speed)

RPM

4000

3800

峰值轉矩 ( Peak torque )

N.m

6.0

4.66

峰值電流 ( Peak current )

A

45

31.7

線電阻 ( Line to line resistance )

ohms@20℃

0.092

0.23

線電感 ( Line to line inductance )

mH

0.13

0.3

轉矩常數 ( Torque constant )

Nm/A

0.137

0.162

反電勢 ( Back EMF )

Vrms/KRPM

8.3

9.8

機身長度 ( Motor length )

mm

35

27.5

重量 ( Weight )

g

597

386

電氣時間常數(Electrical time constant)

ms

1.4

1.3
